  • MOPEKS® Guide to Factory - Create a Class 22 Method


    Introduction

    This section, in brown italic font, appears in many places on this website for completeness - so you can skip it in future!

    The purpose of this Guide is to show you how to actually use the computer program MOPEKS. If you are not a computer programmer, please read 'Guide ⇨ Basic Principles' first.

    If you are a computer programmer, please read 'Guide ⇨ Key Concepts' followed by 'Guide ⇨ How it Works'. You could even buy and read 'The Book' but that may be a step too far.

    You can then experiment by actually running the program MOPEKS.

    Firstly, download and install MOPEKS as explained in 'Downloads ⇨ MOPEKS Program'.

    Then start it up! When you encounter the Advice form (see 'FAQ ⇨ List of Forms ⇨ Form Advice') please read what it has to say. If it has any "red" content then there is a problem and you will have to do your best to solve it with the help of the 'Troubleshooting' section. By all means send me the error log if that happens - see 'Guide ⇨ Quality Control'

    Assuming there are no problems, press the green "continue" button on the Advice form and you will encounter the Wizard, which is oriented towards actions. Then press the green continue button to go straight on to Reception which is oriented towards locations. Both of these forms are merely different routes to the same thing - you can regard them as being navigational aids.

    Press the appropriate radio button until the Reception form looks like below. Now read what it has to say carefully - MOPEKS is complicated. It may look like a game but it is not.

    http://www.mopeks.org/images/form_reception_factory.gif Left click on image for a full size shot in a new tab or window. Press F11 for a full screen, if you wish. Then F11 again to return

    End of brown italic section!

    Continue

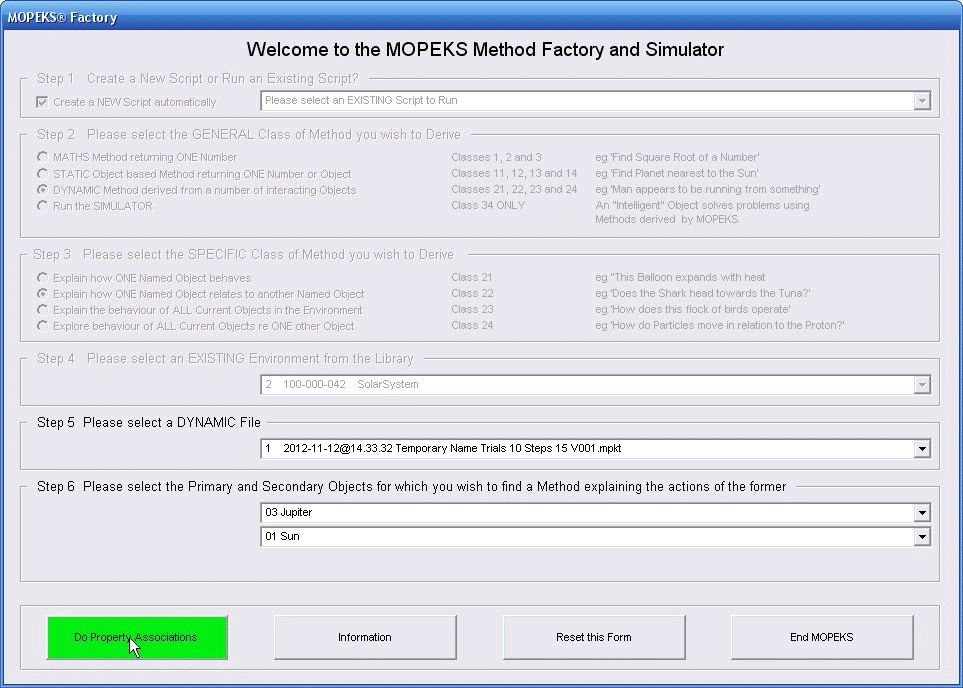

    Now press the green Continue button on form Reception and the Factory form should come up. Press buttons until it looks like the screen shot below!

    http://www.mopeks.org/images/form_factory_class_22_method.gif Left click on image for a full size shot in a new tab or window. Press F11 for a full screen, if you wish. Then F11 again to return

    When you are ready, press the green "Do Property Associations" button and the Property Associations form will come up as below. This form is explained at much greater length in FAQ ⇨ General ⇨ Q7) but the explanation on the form itself should really be sufficient if you are just looking around.

    http://www.mopeks.org/images/form_property_associations.gif
    Left click on image for a full size shot in a new tab or window. Press F11 for a full screen, if you wish. Then F11 again to return

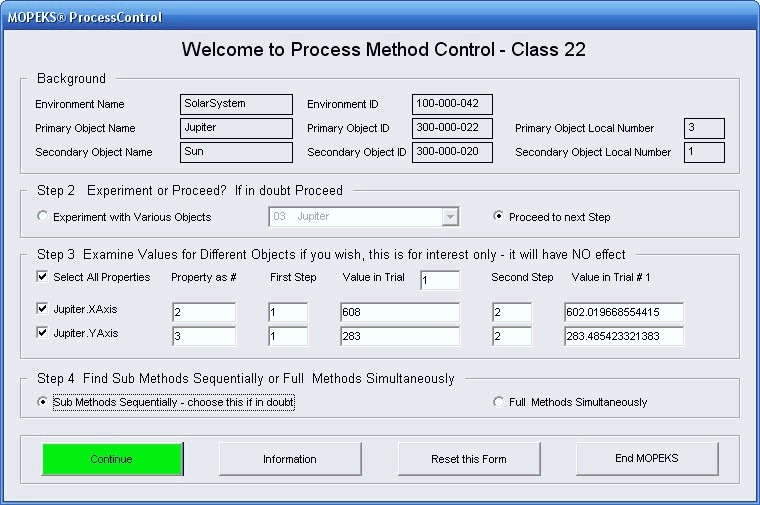

    When you are ready, press the green button and the Process Control form will come up as below. This form is explained at much greater length in FAQ ⇨ General ⇨ Q14. For the moment, we will create methods Sequentially. The time to experiment with Simultaneous method creation is when you really know your way around MOPEKS - not now.

    http://www.mopeks.org/images/form_process_control_class_22_sequential.gif Left click on image for a full size shot in a new tab or window. Press F11 for a full screen, if you wish. Then F11 again to return

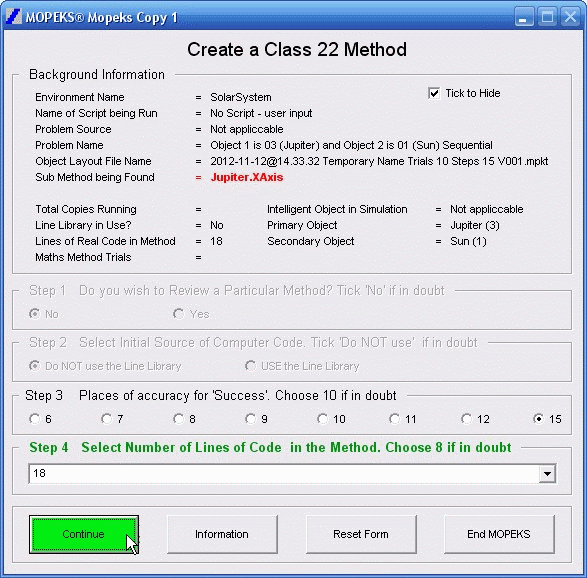

    When you are ready, press the green "Continue" button and the Mopeks form will come up. Press buttons until it looks like the screen shot below!

    http://www.mopeks.org/images/form_mopeks_Create_class_22_method.gif
    Left click on image for a full size shot in a new tab or window. Press F11 for a full screen, if you wish. Then F11 again to return

    Yet again, when you are ready, press the green "Continue" button and the Mopeks form will start running in Create mode. But before doing so it will ask you if you wish to open a copy for each core in your processor, as below.

    In this case hit the 'Yes' button as finding a successful outcome can take some hours.

    http://www.mopeks.org/images/form_standard_cores_yes.gif
    Left click on image for a full size shot in a new tab or window. Press F11 for a full screen, if you wish. Then F11 again to return

    It may also (if you are running on 'Introductory Mode' or 'Intermediate Mode'), advise you of the location of the saved files, which will always be as below:

    C:\MOPEKS\Factory\Methods\Success

    http://www.mopeks.org/images/form_advice_Create_method_location.gif
    Left click on image for a full size shot in a new tab or window. Press F11 for a full screen, if you wish. Then F11 again to return

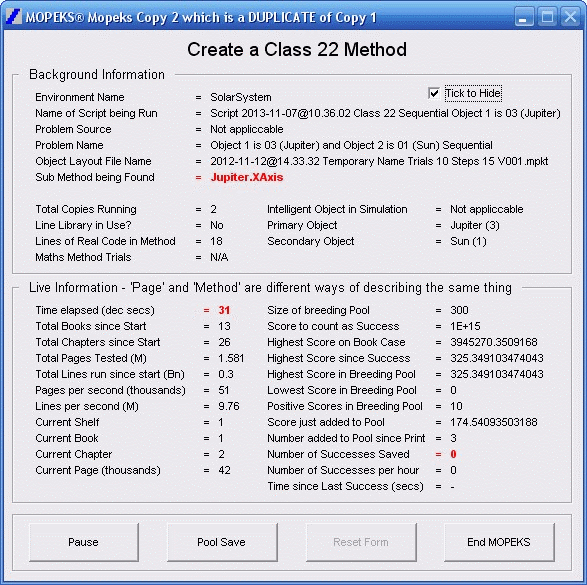

    When (or if) it finds a solution it will turn pale green. As it find subsequent solutions the shade of green will darken. It should look like the screenshot below:

    http://www.mopeks.org/images/form_mopeks_Create_class_22_method_running.gif
    Left click on image for a full size shot in a new tab or window. Press F11 for a full screen, if you wish. Then F11 again to return

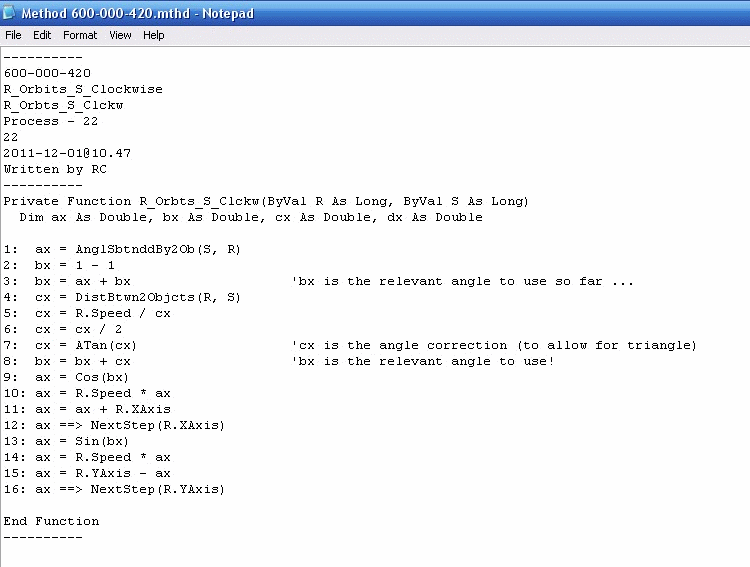

    If it does find a solution, look in the folder 'C:\MOPEKS\Factory\Methods\Success' and click on it, choosing the 'No' option so as to view it in Notepad (or possibly WordPad). It will look something like the screenshot below:

    http://www.mopeks.org/images/form_notepad_class_22_method.gif Left click on image for a full size shot in a new tab or window. Press F11 for a full screen, if you wish. Then F11 again to return

    Continue

    Note that the actual working Method shown above has 16 lines whereas the example running is looking for a 18 line Method. It is typically a good idea to allow a few extra lines when you first start looking for a particular Method. See 'FAQ ⇨ Methods ⇨ #20' for more on this subject.

    Viewing Methods in MOPEKS Basic or MOPEKS C

    You can view the Methods that MOPEKS has generated either in Mopeks Basic or in Mopeks C. To change this setting, please proceed as follows:

    Start MOPEKS ⇨ Reception ⇨ Office ⇨ Step 3, tick as appropriate

    You cannot actually use Mopeks C as input at the moment. It is purely illustrative. The context is explained at greater length in 'FAQ ⇨ Methods ⇨ Q1'.
